Geotextile Warp Knitting Machine 3bars Green Shade Net Manufacturing Machine

Name: Geotextile Warp Knitting Machine 3bars Green Shade Net Manufacturing Machine
Brand: ZYTT
Price: 380 USD

Wholesale Geotextile Warp Knitting Machine 3bars Green Shade Net Manufacturing Machine from china suppliers

Place of Origin : Jiangsu, China

Brand Name : ZYTT

Packaging Details : Wrapped with plastic film and packed in wooden cases

Supply Ability : 100 Set/Sets per Month

Price : $380,000.00/sets 1-4 sets

Certification : CE

MOQ : 1 set

Delivery Time : 30 days

Applicable Industries : Manufacturing Plant, Printing Shops

Condition : New

Product Type : Geotextile, Geotextile

Type : warp knitting machine

Production Capacity : high speed

Power : 35000 W

Knitting Style : Warp

Knitting Method : Single

Computerized : Yes

Weight : 15000 KG

Warranty : 1 Year

Key Selling Points : High-accuracy

Gauge : 10GG, E10

Knitting width : 245inch 62000mm

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : New Product 2021

Warranty of core components : 1 Year

Core Components : Motor, PLC

Keywords : warp Kintting Machine

Application : Geotextile making

Speed : 1000rpm

POWER : 35KVA

Local Service Location : India

Bars : 3

Color : white

Port : shanghai

Contact Now

Geotextile warp knitting machine 3bars

Brief introduction

Needle type: pointed composite needle with needle core Needle bed: integral embedded, single replacement Stripper plate: needle block type Needle core: needle block type Settlement: needle block type Comb bar: 2 ground combs (GB1 and GB2), 1 warp lining comb (warp lining sheet); Let off: two sets of pan head let off, which can drive the pan head with a maximum diameter of 32 inches, and one set of yarn feeding roller let off, which is composed of two rollers coated with blue polished deep layer on the surface of 200x25mm precision steel pipe. The driving motor and reducer are equipped with reinforced type as standard; Traction: main traction and auxiliary traction, with reinforced drive motor and reducer as standard; Weft insertion system: the weft insertion system with horizontal reversal function is synchronously completed by 7 servo motors, and the weft insertion and weft laying mechanism is configured with 36 weft;

Machine Specification & Advantages

Needle type			pointed composite needle with needle core
Gauge			E10
Number of bars			3 bars
Working width			62000mm
Max speed			1000rpm
Power of Main Motor			35KVA

Advantage 1

Weft cutting: diamond wheel cutting machine, located on the left and right side of the machine respectively, is used to cut weft;

Weft waste recycling: a recycling system composed of negative pressure vacuum suction nozzle and pipeline;

Weft frame yarn: weft frame with spare yarn, which is used for high-strength polyester. The spare yarn and working yarn can be connected end to end without stopping for yarn change. It is equipped with 36 tensioners (30-230cn), and each yarn outlet is equipped with yarn breaking detection device;

Advantage 2

Frame: independent pan head (2 sets of 32 inch pan heads) and warp feeding leno frame, with safety guardrail, operation platform and 2 ladders; Yarn breakage detection: equipped with 2 sets of weft detection devices, 1 set on the left and right sides of the machine; Equipped with 2 sets of laser blowing yarn breaking detection devices for GB1 and GB2, for early detection of yarn breaking;

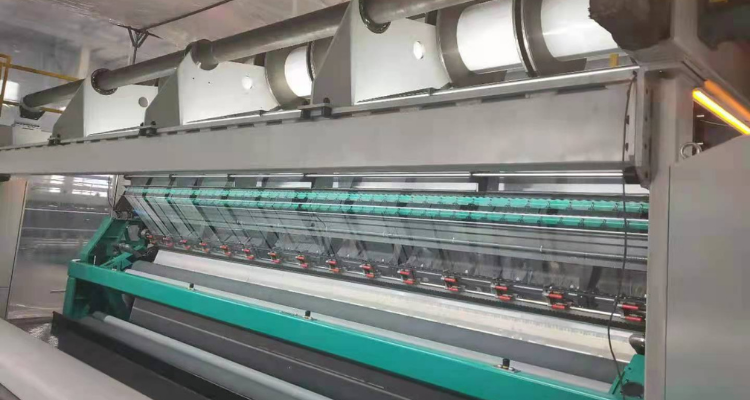

Machine Display

Geotextile Warp Knitting Machine 3bars Green Shade Net Manufacturing Machine

Machine Application
